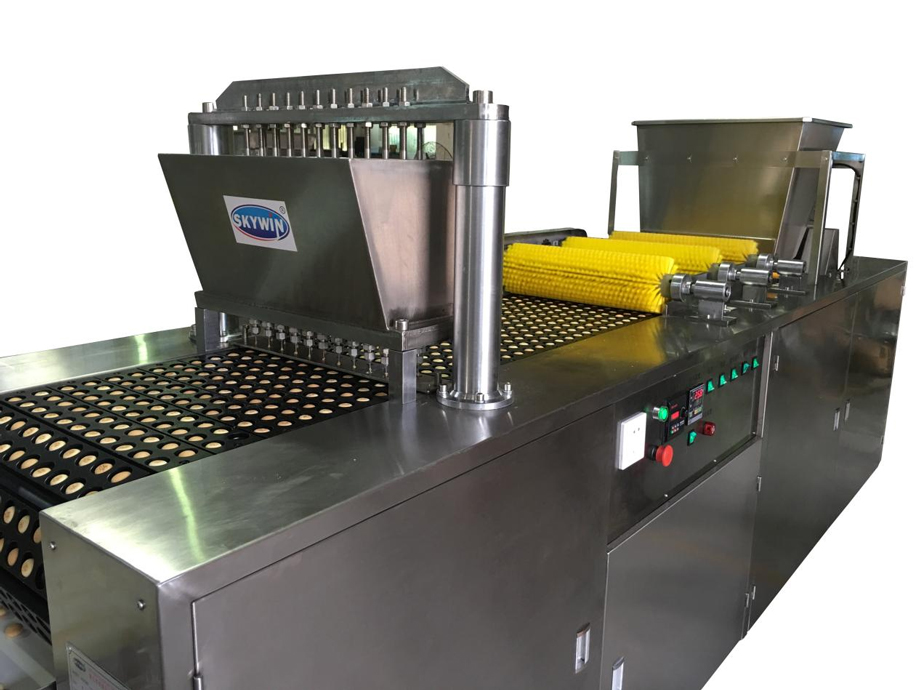

The Chocolate injection machine is a kind of continuous feeding automation equipment, it is through vibrating hello panda biscuits, automatic feeding, automatic injection chocolate/cream, automatic unloading and continuous process, greatly improve the production efficiency, the equipment adopts frequency conversion motor, the user can conveniently and flexibly adjust production speed, the use of electrical components and Mechanical transmission parts quality, making equipment, stable performance, low failure rate.

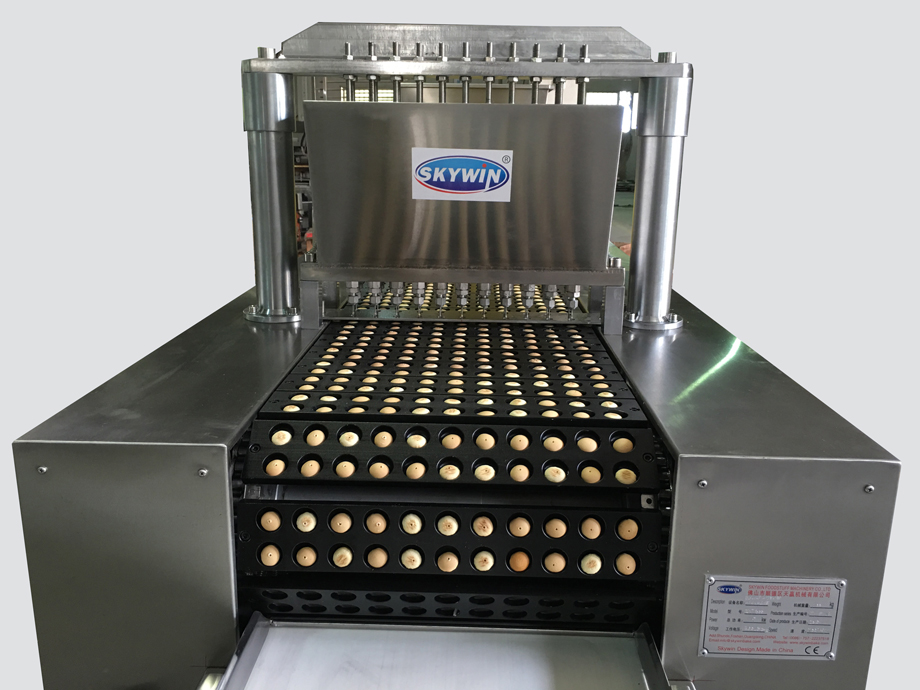

Hello biscuits are gently released from Biscuit hopper onto the telflon coated moulds, which are attached onto a chain-conveyor with intermitted movements. Plastic rolling brush rolls the biscuits into individual moulds. Meanwhile double jacket chocolate/cream hopper tank controlling the cream viscosity and special needles are use to inject chocolate/cream into center of hello biscuits. Finish products are automatically discharge from the moulds.

This Machine with Heavy duty components with cam drives and frequency drive motor control, for production stability and high performance.

2. Technical parameters

Outside Dimension: Length 3900 * Width950 * Height1500 mm)

Total Power: 9 Kw

Power supply: AC380V 50HZ/3phase

Maximum capacity: 700 / min

The compressed air is not less than 0.4Mpa

Equipment weight: 1100 Kg
