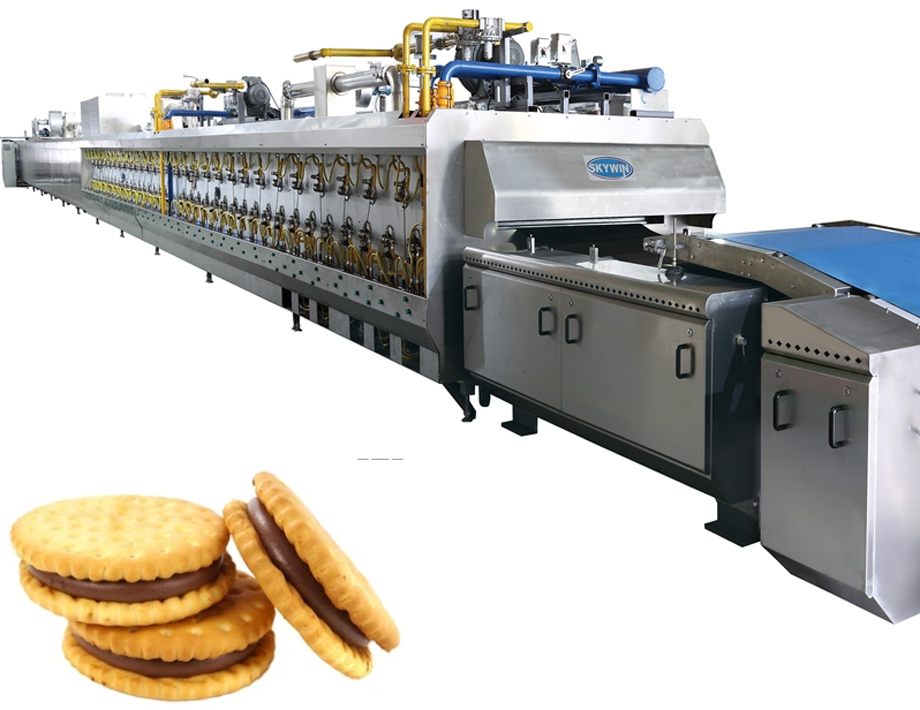

There are three kinds of tunnel oven ,which adopts gas or electric heating or diesel oil mode,used for baking biscuit,cookies,cake,bread,toast, etc.

Some advantages as following:

1) Continuous baking, large baking capacity, easy operation and labour saving

2) Wide baking range, separately control with upper, lower fire

3) Applicable for baking different kinds of food, e.g.cookies, biscuit, cake, toast,cake, bread,etc

4) Heating tubs and electric organs

5) Beautiful and natural appearance with importing stainless steel materials

6) Width and length of the products as per the request of customers

7) Human-Machine Touch screen and PLC control system for full-automatic transportation line. Easy operation.

8)High efficiency,Long usagege, Easy maintenance.

9) Adopt automatic temperature control system and SSR make sure the temperature of oven constantly.

10) The Hot-air Circulation bake biscuit evenly for Biscuits Cookies taste nicely and bright-colored .

11) Every temperature zone has separately control system and combined control

12) Hot-air circulation system, High efficiency,Rapid heating, Save energy.

13) Designed with special fire pipes configuration, the products are baked evenly.

14) Automatic alarm device.Applied with the protective devices for flame out alarm and protection, forced ignition and auto on-off of solenoid valve, the operation is ensured more safe.

15) The outer frame is made of stainless steel and the inner body made of food grade high temperature resistance cast-iron. All materials touch food are meeting the food hygienic requirement.

16) Quality thickened insulation material is used to save energy, top 350mm, both side 300mm and bottom 280mm thickness

17) Imported electrical units like Siemens brand, Schneider brand,etc are used to ensure stable performance, reliable quality and low failure.

18) Coordinated with production line, it can save manpower and resources, improving the production efficiency and capacity.

19)Cleaning windows in each 3meters

20) Speed control by frequency inverter

Oven driver and Belt automatic tension & rectification device

Oven belt drive drum, V type mesh belt 5.2x11x1.2x1.4mm, belt automatic electronic tightening and adjusted deflection by inlet and outlet air cylinder
