卧式叠层机

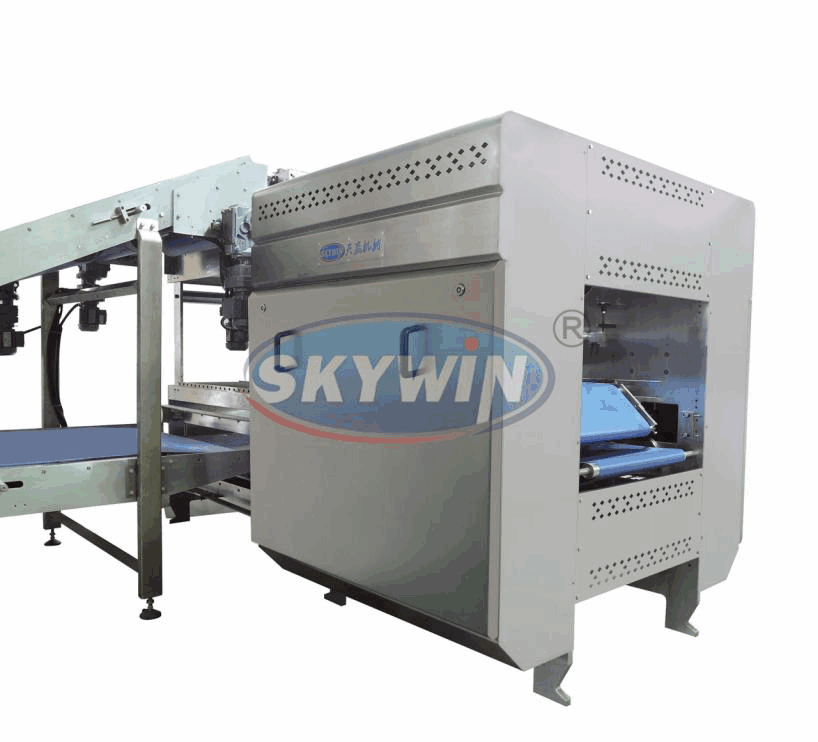

Horizontal Laminator

There are overlap Laminator and Cut-type Laminator for option.

It’s neccessary machine for making soda biscuit, crackers and Layer cake.

Skywin produce Vertical Laminator too, 7 units dough rollers are using if special required.

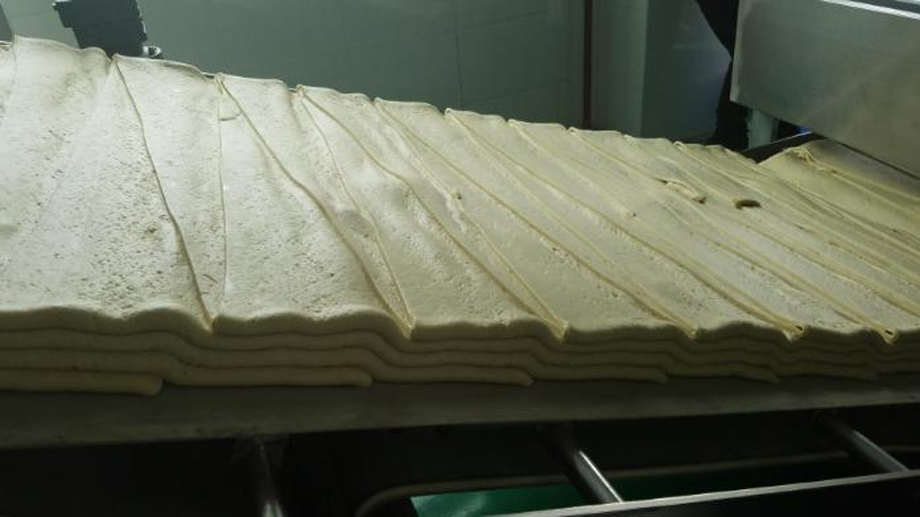

This Laminator utilizes precision servo motor control to accurately cut, stack and deliver sheeted dough to the downstream reduction and forming equipment. Dough sheets are conveyed to the discharge conveyor by the servo driven layering carriage. This carriage deposits the sheets by extending them to the far edge of the laminator take-away conveyor. The carriage retracts while conveying, laying the sheets gently on top of the moving lamination stack.

Horizontal structure saving installed space and make the automatic feeding come true PU conveyor belt, 1mm thickness, Gearbox use GUOMAO BRAND brand ,  bevel wheel with high drive efficiency, low noise and work stability and so on. Motor:  GUOMAO BRAND brand, high efficiency, low noise and long using life and so on.2pcs Groove type feeding Gauge roller diameter 350mm, 2pcs smooth type Gauge roller 230mm

Soda cracker

Layer cake cracker (puff pastry)
